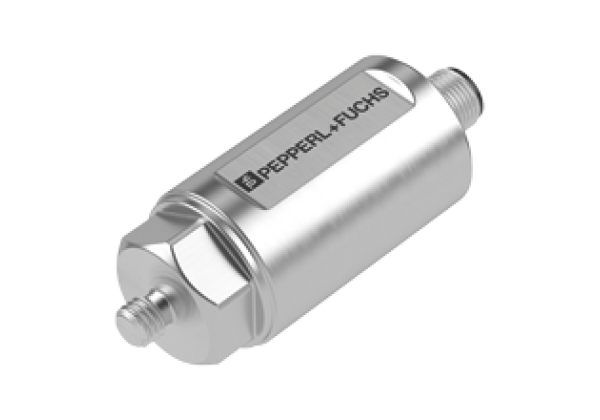

Vibration sensor VIM62PL-E1T16-0ME-I420V14
Brand: Pepperl+Fuchs
Code: VIM62PL-E1T16-0ME-I420V14
Vibration sensor with analog current output and increased temperature resistance, Series: Performance Line, Measured variable: Vibration velocity
Temperature, Output type: analog output, current
output of the vibration variable, Output type: analog output, current
output of the temperature
Datasheet excerpt: Technical data of VIM62PL-E1T16-0ME-I420V14
| Product Description |
|---|
| Vibration sensor with analog current output and increased temperature resistance |
| General specifications | ||
|---|---|---|
| Type | Vibration sensor | |
| Measuring technology | MEMS | |
| Series | Performance Line | |
| Measured variable | Vibration velocity Temperature | |
| Measurement range | ||
| Vibration velocity | 0... 16 mm/s | |
| Temperature | -40... 125 °C (-40... 257 °F) | |
| Measurement accuracy | ± 0.1 mm/s (calibration point: 90% of the measuring range; 159.2 Hz) Complies with the tolerance requirements of DIN ISO 2954 for measurement range greater than 8 mm/s | |
| Cross-sensitivity | < 5 % of the partial lateral acceleration, which acts exactly 90° to the measuring axis | |
| Frequency range | 10... 1000 Hz | |
| Averaging time | for v-rms: 2 s | |
| Electrical specifications | ||
| Fusing | external fuse is required: 3 A , semi-time-lag , 30 V DC | |
| Operating voltage | 10... 30 V DC | |
| Current consumption | max. 50 mA | |
| Power consumption | max. 750 mW | |
| Time delay before availability | 10 s (rms filter is calculated intially with measurement data before they are available at the output) | |
| Surge protection | up to 2 kV | |
| Output 1 | ||
| Output type | analog output, current output of the vibration variable | |
| Output current | 4... 20 mA | |
| Load resistor | ≤ 500 Ω | |
| Output 2 | ||
| Output type | analog output, current output of the temperature | |
| Output current | 4... 20 mA | |
| Load resistor | ≤ 500 Ω | |
| Standard conformity | ||
| Degree of protection | DIN EN 60529, IP66, IP67 | |
| Shock resistance | DIN EN 60068-2-27, 60 g, 6 ms | |
| Vibration resistance | DIN EN 60068-2-6, 16.5 g, 10 ... 1000 Hz | |
| Approvals and certificates | ||
| UL approval | ||
| Ordinary Location | E468231 cULus Listed, Class III Power Source and limited energy , if UL marking is marked on the product. For use in NFPA 70 Applications only. adapters providing field wiring on request | |
| Maximum permissible ambient temperature | max. 60 °C (max. 140 °F) | |
| Ambient conditions | ||
| Ambient temperature | -40... 60 °C (-40... 140 °F) | |
| Measuring head temperature | -40... 125 °C (-40... 257 °F) directly at the mounting point | |
| Storage temperature | -40... 60 °C (-40... 140 °F) | |
| Mechanical specifications | ||
| Connection type | plug | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Housing length | 82.35 mm | |
| Housing diameter | 31 mm | |
| Degree of protection | IP66 / IP67 only in connected state | |
| Connector | ||
| Threading | M12 | |
| Number of pins | 4 | |
| Mass | approx. 200 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27271103 |
| ECLASS 12.0 | 27201406 |
| ECLASS 11.0 | 27201406 |
| ECLASS 10.0.1 | 27201406 |
| ECLASS 9.0 | 27201406 |
| ECLASS 8.0 | 27201406 |
| ECLASS 5.1 | 27201406 |
| ETIM 9.0 | EC004309 |
| ETIM 8.0 | EC004309 |
| ETIM 7.0 | EC002959 |
| ETIM 6.0 | EC002959 |
| ETIM 5.0 | EC001758 |
| UNSPSC 12.1 | 41114624 |
