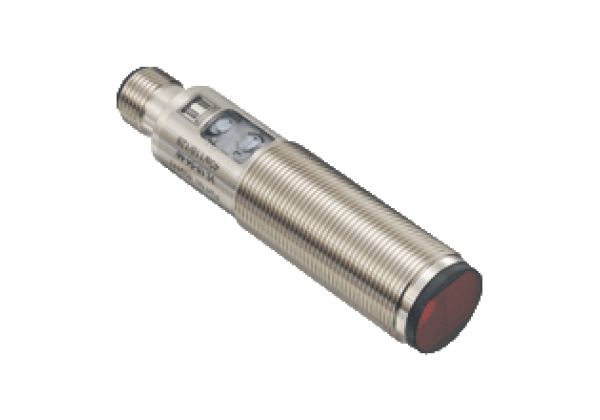

Retroreflective sensor VL18-54-M/32/40a/82b/118
Brand: Pepperl+Fuchs
Code: VL18-54-M/32/40a/82b/118
Retroreflective sensor with polarization filter, Array control panel with highly visible LED display, Flashing power on LED in case of short-circuit, Multiple device installation possible, no mutual interference (no cross-talk), Not sensitive to ambient light, even with switched energy saving lamps, Protection class II
Datasheet excerpt: Technical data of VL18-54-M/32/40a/82b/118
| Product Description |
|---|
| Retroreflective sensor with polarization filter |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 3.5 m | |
| Threshold detection range | 4 m | |
| Reference target | H50 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 632 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | 200 mm at a distance of 3500 mm | |
| Opening angle | 3 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux ; according to EN 60947-5-2:2007 | |
| Hysteresis | < 15 % | |
| Functional safety related parameters | ||
| MTTFd | 700 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, flashes in case of short-circuit | |
| Function indicator | LED yellow, light with free light beam , flashes when falling short of the stability control , OFF when light beam is interrupted | |
| Control elements | Sensitivity adjuster, light/dark switch | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , class 2 | |
| No-load supply current | < 25 mA | |
| Protection class | II , rated voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| Output | ||
| Stability alarm output | 1 PNP, inactive when falling short of the stability control | |
| Switching type | light/dark on, switchable | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | 30 V DC | |
| Switching current | max. 200 mA | |
| Voltage drop | ≤ 2.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| UL approval | cULus Listed, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -30... 70 °C (-22... 158 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
| Mass | 60 g | |
