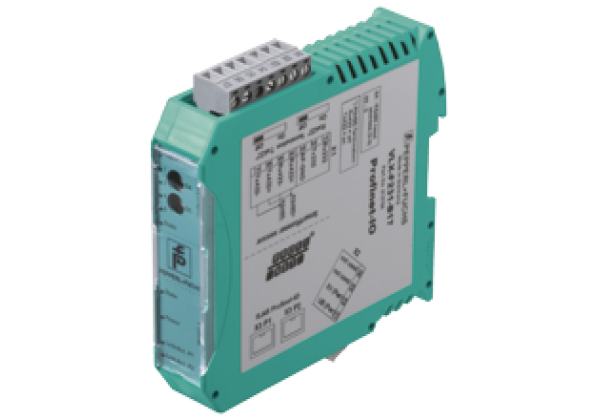

Interface module VLX-F231-B17
Brand: Pepperl+Fuchs
Code: VLX-F231-B17
Interface module with PROFINET interface for SmartRunner, Up to 4 sensors can be connected, DIN rail mounting, Ethernet interface with PROFINET, Integrated switch
Datasheet excerpt: Technical data of VLX-F231-B17
| Product Description |
|---|
| Interface module with PROFINET interface for SmartRunner |
| General specifications | ||
|---|---|---|
| Installation | DIN rail mounting | |
| Functional safety related parameters | ||
| MTTFd | 180 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Power consumption | ≤ 3.6 W (without read heads) | |
| Interface 1 | ||
| Connection of | control system | |
| Interface type | Ethernet; 100 BASE-TX | |
| Protocol | PROFINET IO | |
| Transfer rate | 100 MBit/s | |
| Data output format | binary code | |
| Interface 2 | ||
| Connection of | control system | |
| Interface type | Ethernet; 100 BASE-TX | |
| Protocol | PROFINET IO | |
| Transfer rate | 100 MBit/s | |
| Data output format | binary code | |
| Interface 3 | ||
| Connection of | sensor | |
| Interface type | RS485 | |
| Protocol | half duplex | |
| Transfer rate | 230 kBit/s | |
| RS485 termination resistor | switchable | |
| Refresh cycle of read head | 1 ms | |
| Standard conformity | ||
| Emitted interference | EN 55011, cl. A: 2007 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | -25... 85 °C (-13... 185 °F) , no moisture condensation | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | ≤ 80 % | |
| Mechanical specifications | ||
| Connection type | Interface 1 & 2: RJ-45 socket, 8-pin Interface 3: terminal connection ≤ 2.5 mm2 Interface 4: Terminal connection, 2-pin | |
| Housing width | 23 mm | |
| Housing height | 100 mm (without plug-in screw connector) 111 mm (incl. plug-in screw connector) | |
| Housing depth | 115 mm | |
| Degree of protection | IP20 | |
| Material | plastic | |
| Installation position | any position | |
| Mass | approx. 150 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
