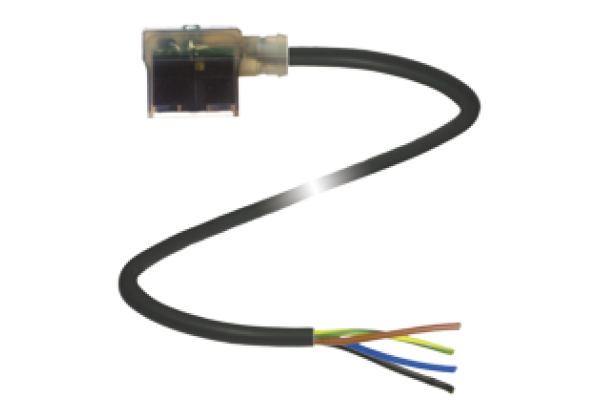

Valve Connector Cordset VMA-2+P/A-10M-PUR
Brand: Pepperl+Fuchs
Code: VMA-2+P/A-10M-PUR
Valve connector, Form A, 2+PE, suppressor diode, switch amplifier, PUR cable
Datasheet excerpt: Technical data of VMA-2+P/A-10M-PUR
| Product Description |
|---|
| Valve connector, Form A, 2+PE, suppressor diode, switch amplifier, PUR cable |
| General specifications | ||
|---|---|---|
| Number of pins | 2 + PE | |
| Connection 1 | Valve connector DIN | |
| Construction type 1 | right angle | |
| Connection 2 | cable end | |
| Indicators/operating means | ||
| LED yellow | Functional display | |
| Electrical specifications | ||
| Operating voltage | 24 V DC | |
| Operating current | max. 2 A | |
| Suppression | Amplifier | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Flammability | Cable: UL 758 / UL 1581 DIN EN 50265-2-1 IEC 60332-1-2:2005 | |
| Approvals and certificates | ||
| UL approval | UL-Style 20549 | |
| Ambient conditions | ||
| Ambient temperature | Body: -25... 90 °C (-13... 194 °F) cable, flexing: -20... 80 °C (-4... 176 °F) cable, fixed: -40... 80 °C (-40... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Valve connector Form A | |
| Material | ||
| Body | TPU, transparent | |
| Cable | PUR | |
| Core insolation | PVC | |
| Cable | fine-strand, flexible | |
| Sheath diameter | ∅ 5.8 mm | |
| Bending radius | > 10 x cable diameter, moving > 5 x cable diameter, fixed | |
| Color | black | |
| Cores | (3 + 1) x 0.75 mm2 | |
| Length | 10 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060312 |
| ECLASS 12.0 | 27060312 |
| ECLASS 11.0 | 27060312 |
| ECLASS 10.0.1 | 27060312 |
| ECLASS 9.0 | 27060312 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
