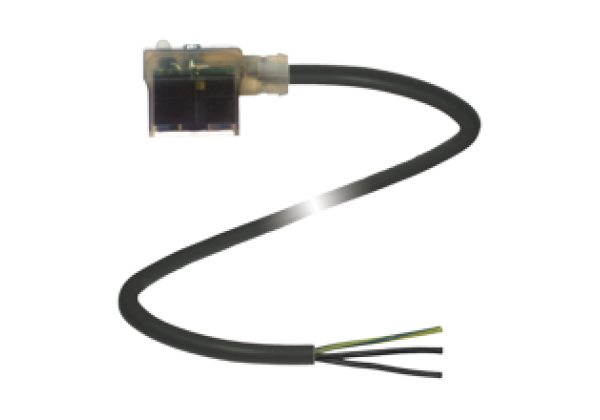

Valve Connector Cordset VMA-2+P/L1-2M-PUR
Brand: Pepperl+Fuchs
Code: VMA-2+P/L1-2M-PUR
Valve connector Form A
Datasheet excerpt: Technical data of VMA-2+P/L1-2M-PUR
| Product Description |
|---|
| Valve connector Form A |
| General specifications | ||
|---|---|---|
| Number of pins | 2 + PE | |
| Connection 1 | Valve connector DIN | |
| Construction type 1 | right angle | |
| Connection 2 | cable end | |
| Indicators/operating means | ||
| LED yellow | Operating display | |
| Electrical specifications | ||
| Operating voltage | 24 V AC/DC | |
| Operating current | max. 10 A | |
| Volume resistance | < 10 mΩ | |
| Ambient conditions | ||
| Ambient temperature | -25... 80 °C (-13... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Contact elements | Fork type springs | |
| Degree of protection | IP65/IP67 | |
| Connection | Valve connector Form A | |
| Material | ||
| Contacts | CuZn ; CuSn | |
| Body | PUR | |
| Cable | PUR | |
| Core insolation | PP | |
| Cable | fine-strand, flexible | |
| Sheath diameter | ∅ 5.8 mm | |
| Bending radius | > 10 x cable diameter, moving | |
| Color | grey | |
| Cores | (2 + 1) x 0.75 mm2 | |
| Conductor construction | 42 x 0.15 mm ∅ | |
| Length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060312 |
| ECLASS 12.0 | 27060312 |
| ECLASS 11.0 | 27060312 |
| ECLASS 10.0.1 | 27060312 |
| ECLASS 9.0 | 27060312 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
