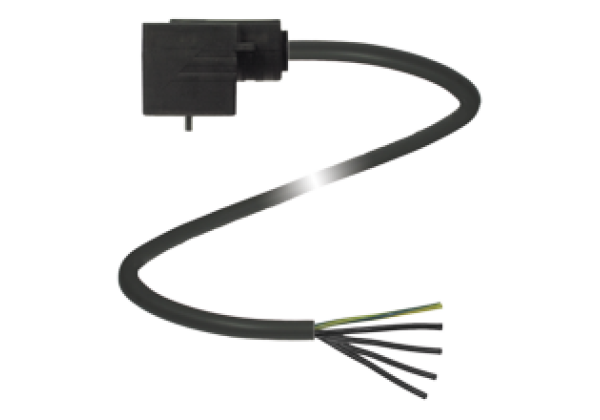

Valve Connector Cordset VMA-3+P/L1-2M-PUR

Code: VMA-3+P/L1-2M-PUR

Valve connector, Form A, 3+PE, LED, PUR cable

Datasheet excerpt: Technical data of VMA-3+P/L1-2M-PUR

Product Description
Valve connector, Form A, 3+PE, LED, PUR cable

General specifications
Number of pins		3 + PE
Connection 1		Valve connector DIN
Construction type 1		right angle
Connection 2		cable end
Indicators/operating means
LED green		Operating display
LED red		Functional display
Electrical specifications
Operating voltage		24 V AC/DC
Operating current		max. 4 A
Volume resistance		< 5 mΩ
Compliance with standards and directives
Standard conformity
	Flammability	Grip: UL 94
Approvals and certificates
UL approval		cURus AWM 20549 (cable)
Ambient conditions
Ambient temperature		Body: -20... 85 °C (-4... 185 °F) cable, flexing: -20... 80 °C (-4... 176 °F) cable, fixed: -40... 80 °C (-40... 176 °F)
Pollution degree		3
Mechanical specifications
Degree of protection		IP65/IP67
Connection		Valve connector Form A
Material
	Contacts	CuSn
	Contact surface	Sn
	Body	TPU, black
	Cable	PUR
	Core insolation	PP
Cable
	Sheath diameter	∅ 5.3 mm
	Bending radius	> 53 mm > 26.5 mm, fixed
	Color	dark grey (RAL 7021)
	Cores	5 x 0.5 mm² ; 20 AWG
	Conductor construction	28 x 0.15 mm ∅
	Length	2 m
Flammability
	Housing	V-0
