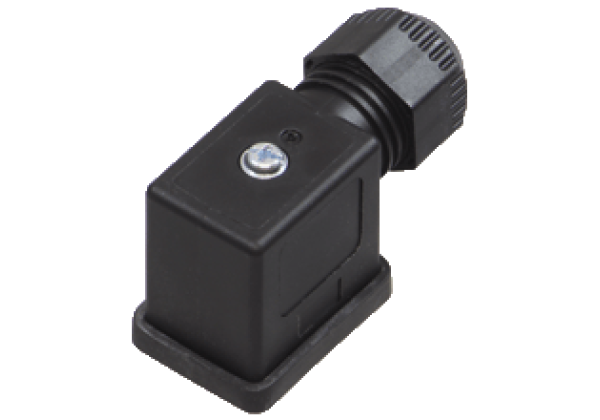

Valve connector, non pre-wired VMB-2+P
Brand: Pepperl+Fuchs
Code: VMB-2+P
Valve connector Form B, non pre-wired
Datasheet excerpt: Technical data of VMB-2+P
| Product Description |
|---|
| Valve connector Form B, non pre-wired |
| General specifications | ||
|---|---|---|
| Number of pins | 2 + PE | |
| Connection 1 | Valve connector DIN | |
| Construction type 1 | right angle | |
| Electrical specifications | ||
| Operating voltage | 250 V AC / 300 V DC | |
| Operating current | max. 16 A | |
| Volume resistance | < 4 mω | |
| Ambient conditions | ||
| Ambient temperature | -40... 90 °C (-40... 194 °F) | |
| Storage temperature | -40... 125 °C (-40... 257 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Valve connector Form B screw terminal for max. 1.5 mm2 ; 16 AWG | |
| Material | ||
| Contact surface | Ag | |
| Body | PA, black | |
| Seal | NBR | |
| Cable | ||
| Sheath diameter | 4... 9 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440105 |
| ECLASS 12.0 | 27440105 |
| ECLASS 11.0 | 27440105 |
| ECLASS 10.0.1 | 27440105 |
| ECLASS 9.0 | 27440105 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003623 |
| ETIM 8.0 | EC003623 |
| ETIM 7.0 | EC003623 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
