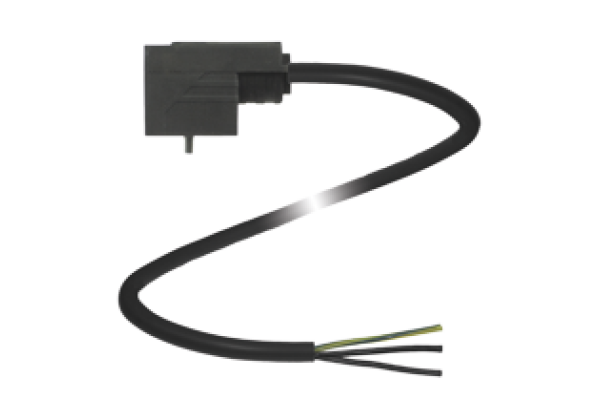

Valve Connector Cordset VMB-2+P-5M-PUR
Brand: Pepperl+Fuchs
Code: VMB-2+P-5M-PUR
Valve connector, Form B, 2+PE, PUR cable
Datasheet excerpt: Technical data of VMB-2+P-5M-PUR
| Product Description |
|---|
| Valve connector, Form B, 2+PE, PUR cable |
| General specifications | ||
|---|---|---|
| Number of pins | 2 + PE | |
| Connection 1 | Valve connector DIN | |
| Construction type 1 | right angle | |
| Connection 2 | cable end | |
| Electrical specifications | ||
| Operating voltage | 250 V AC/DC | |
| Operating current | max. 10 A | |
| Volume resistance | < 10 mΩ | |
| Ambient conditions | ||
| Ambient temperature | Body: -25... 80 °C (-13... 176 °F) cable, flexing: -20... 80 °C (-4... 176 °F) cable, fixed: -40... 80 °C (-40... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Connection | Valve connector Form B | |
| Material | ||
| Contacts | CuSn | |
| Contact surface | Sn | |
| Body | TPU, black | |
| Cable | PUR | |
| Core insolation | PP | |
| Cable | ||
| Sheath diameter | ∅ 4.5 mm | |
| Bending radius | > 50 mm > 22.5 mm, fixed | |
| Color | dark grey (RAL 7021) | |
| Cores | (2 + 1) x 0.5 mm2 ; 20 AWG | |
| Conductor construction | 28 x 0.15 mm ∅ | |
| Length | 5 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060312 |
| ECLASS 12.0 | 27060312 |
| ECLASS 11.0 | 27060312 |
| ECLASS 10.0.1 | 27060312 |
| ECLASS 9.0 | 27060312 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
