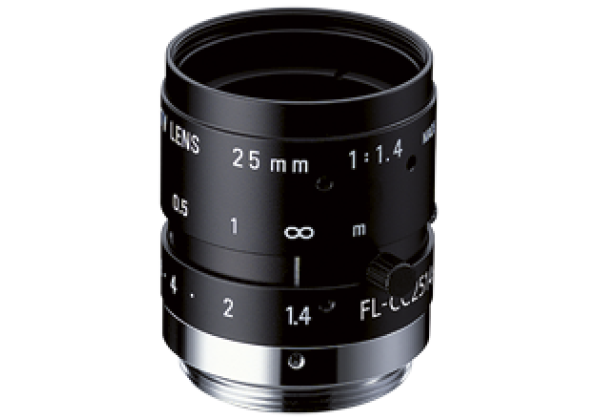

Accessory camera lens VOS-LE-C-25MM
Brand: Pepperl+Fuchs
Code: VOS-LE-C-25MM
Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C-mount cameras
Datasheet excerpt: Technical data of VOS-LE-C-25MM
| Product Description |
|---|
| Fixed focal length lens, high-resolution, compact Megapixel lens, with locking screws for C-mount cameras |
| General specifications | ||
|---|---|---|
| Optical resolution | 2 MP | |
| Focal length | 25 mm | |
| Focal range | ≥ 25 mm... < 50 mm | |
| Format | 2/3" | |
| Aperture | F1,4-16 | |
| Aperture contro | manually | |
| Horizontal angle of view | 20 ° | |
| Vertical angle of view | 15.1 ° | |
| Diagonal angle of view | 24.9 ° | |
| At image format | 8.8 x 6.6 mm | |
| MOD (Minimum object distance) | 250 mm | |
| Ambient conditions | ||
| Operating temperature | -20... 50 °C (-4... 122 °F) | |
| Mechanical specifications | ||
| Housing length | 32 mm | |
| Housing diameter | ∅ 29.5 mm | |
| Mass | 55 g | |
| Objective connection | C-mount | |
| Filter thread | M 27 × 0,5 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310101 |
| ECLASS 12.0 | 27310101 |
| ECLASS 11.0 | 27310101 |
| ECLASS 10.0.1 | 27310101 |
| ECLASS 9.0 | 27310101 |
| ECLASS 8.0 | 27310101 |
| ECLASS 5.1 | 27310101 |
| ETIM 9.0 | EC002999 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC002999 |
| UNSPSC 12.1 | 43211711 |
