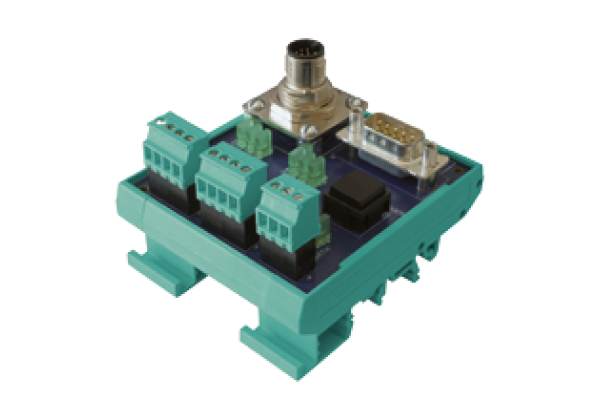

Evaluation board for VOS cameras VOS-PROG1
Brand: Pepperl+Fuchs
Code: VOS-PROG1
Datasheet excerpt: Technical data of VOS-PROG1
| Indicators/operating means | ||
|---|---|---|
| LED green | 3 x Input I0, I1, I2 3 x Output O0, O1, O2 1 x PWR | |
| Electrical specifications | ||
| Operating voltage | max. 24 V | |
| Operating current | max. 200 mA | |
| Interface | ||
| Connection | 1 x M12 connector, 12-pin 1 x D-Sub plug 9-pin | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
