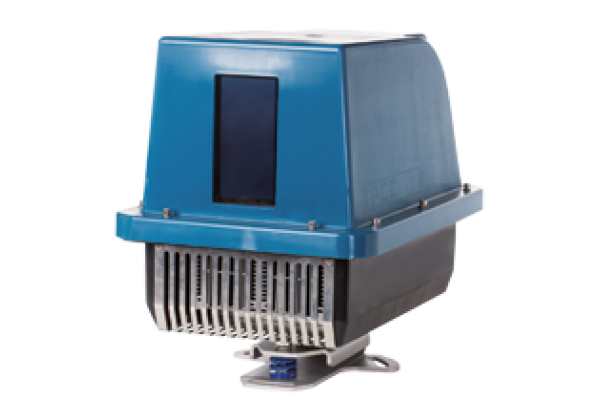

Climate control housing VPH-F200-T
Brand: Pepperl+Fuchs
Code: VPH-F200-T
Climate control housing to extend the temperature range of the sensor used, over temperature protection, Thermostatic regulation
Datasheet excerpt: Technical data of VPH-F200-T
| Product Description |
|---|
| Climate control housing to extend the temperature range of the sensor used |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 24 V DC +/- 10 % | |
| Operating current | max. 10 A | |
| Power consumption | 200 W | |
| Ambient conditions | ||
| Operating temperature | -40... 80 °C (-40... 176 °F) | |
| Mechanical specifications | ||
| Housing width | 239 mm | |
| Housing height | 305 mm | |
| Housing depth | 349 mm | |
| Degree of protection | IP20 | |
| Material | ||
| Housing | PA 6 | |
| Mounting foot | Stainless steel 1.4541 | |
| Mass | approx. 8000 g | |
| General information | ||
| Note | Prevent condensation from forming on the front panel by ensuring that the VPH enclosure is not subjected to any major temperature fluctuations. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
