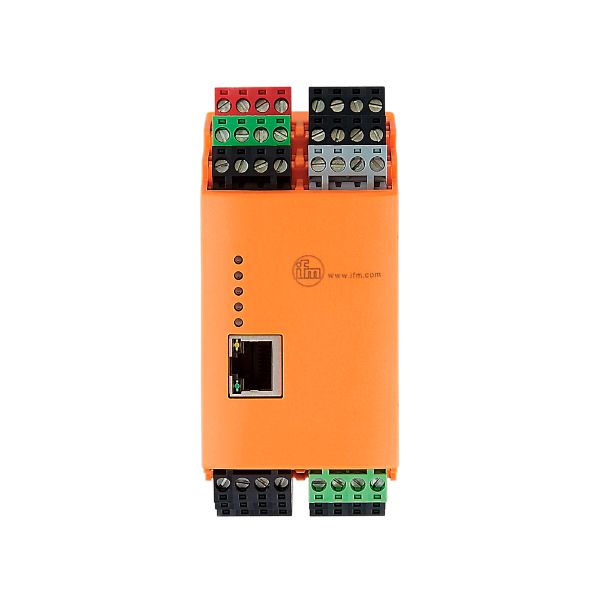

VSE101 Diagnostic electronics for vibration sensors DIAGNOSTIC ELECTRONICS
Brand: IFM Electronic
Code: VSE101
- For the reliable vibration monitoring of machines and equipment
- Condition-based maintenance thanks to monitoring of unbalance, rolling element bearing or gear state
- Inputs for the simultaneous detection of up to four vibration sensors
- Two switching outputs for pre-alarm and main alarm
- Analogue inputs for monitoring further measurement variables
Product characteristics
| Frequency range [Hz] | 0.1...12000 |
|---|---|
| Communication interface | Ethernet |
Application
| Design | parameter setting via PC software VES004 |
|---|---|
| Application | continuous vibration monitoring |
Electrical data
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC; (when using the IEPE input: 24 V + 20%; IEPE = Integrated Electronics Piezo Electric) |
| Current consumption [mA] | 200; (24 V) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 8; Number of analogue inputs: 2; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1 |
Inputs
| Total number of inputs | 10 |
|---|---|
| Number of digital inputs | 8; (configurable) |
| Input circuit of digital inputs | HTL |
| Number of analogue inputs | 2 |
| Analogue input (current) [mA] | 4...20 |
| Resolution of analogue input | 12 |
| Number of dynamic inputs | 4 |
| Dynamic input - signal | 0...10 mA / IEPE / 4...20 mA |
| Dynamic input - resolution [bit] | 16 |
| Dynamic input - frequency range [Hz] | 0,1...12000 |
| Dynamic input - sampling rate [kSamples] | 100 |
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal |
| Electrical design | PNP |
| Number of digital outputs | 2; (configurable) |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Number of analogue outputs | 1; (configurable) |
| Analogue current output [mA] | 0...22; (0...10 V) |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Frequency range [Hz] | 0.1...12000 |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Protocol | TCP/IP |
Operating conditions
| Ambient temperature [°C] | 0...70 |
|---|---|
| Storage temperature [°C] | 0...70 |
| Protection | IP 20 |
Tests / approvals
| EMC |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| UL approval |
|
Mechanical data
| Weight [g] | 442.6 |
|---|---|
| Housing | plastic housing |
| Type of mounting | rail; (TH35/EN60715) |
| Dimensions [mm] | 114 x 50 x 105 |
| Materials | PA |
Data memories
| History memory | yes |
|---|---|
| Data memory buffered | yes |
| Data memory type | ring memory; FIFO |
| Real-time clock | yes |
| Memory location | internal |
| Memory interval | min. 1 min |
| Memory size | 881664 data records |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | COMBICON: ; Maximum cable length: 250 m |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VSE101-00 — 13.04.2023 —
