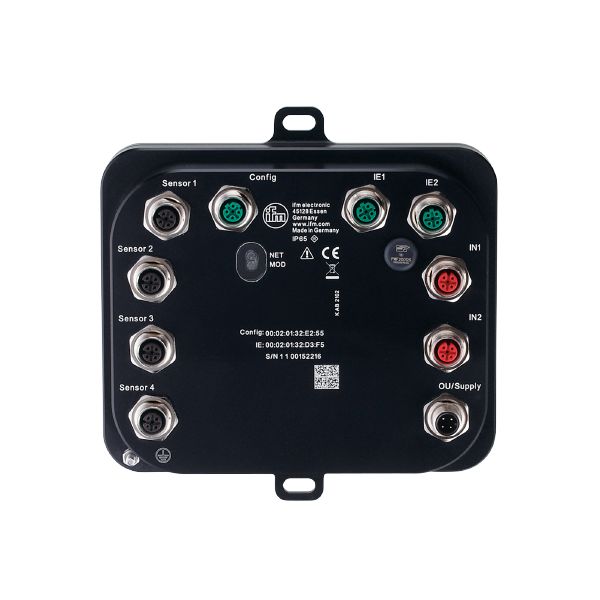

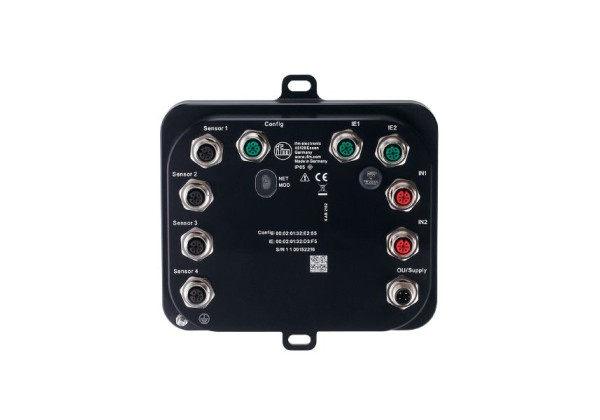

VSE951 Diagnostic electronics for vibration sensors DIAGNOSTIC ELECTRONICS
Brand: IFM Electronic
Code: VSE951
- Robust IP 67 housing for decentralised use
- Fast, error-free installation and retrofitting thanks to standard M12 connections
- Six signal inputs collect all relevant data for condition monitoring
- Separation between automation network and IT network
- Compatible with all common acceleration sensors
Product characteristics
| Frequency range [Hz] | 0...12000 |
|---|---|
| Communication interface | Ethernet |
Application
| Design | parameter setting via PC software VES004 |
|---|
Electrical data
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC |
| Current consumption [mA] | 200; ((24 V DC)) |
| Protection class | III |
Inputs / outputs
| Total number of inputs and outputs | 8; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 1; Number of analogue inputs: 1; number of dynamic inputs: 4; Number of digital outputs: 2; Number of analogue outputs: 1 |
Inputs
| Total number of inputs | 6 |
|---|---|
| Number of digital inputs | 1 |
| Digital input - frequency range [Hz] | 0,1...100000 |
| Number of analogue inputs | 1; (static) |
| Analogue input (current) [mA] | 0...20 |
| Resolution of analogue input | 12 |
| Number of dynamic inputs | 4 |
| Dynamic input - signal | 0...20 mA |
| Dynamic input - resolution [bit] | 16 |
| Dynamic input - frequency range [Hz] | 0...12000 |
| Dynamic input - sampling rate [kSamples] | 100 |
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal |
| Electrical design | PNP |
| Number of digital outputs | 2; (configurable) |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 100 |
| Number of analogue outputs | 1; (configurable) |
| Analogue current output [mA] | 0...22 |
| Max. load [Ω] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Frequency range [Hz] | 0...12000 |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Connector type | M12 |
| Protocol | EtherNet/IP |
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | 0...60 |
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 91 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 1394 |
|---|---|
| Housing | aluminium |
| Type of mounting | backplane mounting |
| Dimensions [mm] | 175 x 172 x 66.6 |
| Materials | EN AW-5083: black anodised |
Data memories
| Real-time clock | yes |
|---|
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VSE951-00 — 27.10.2021 —
