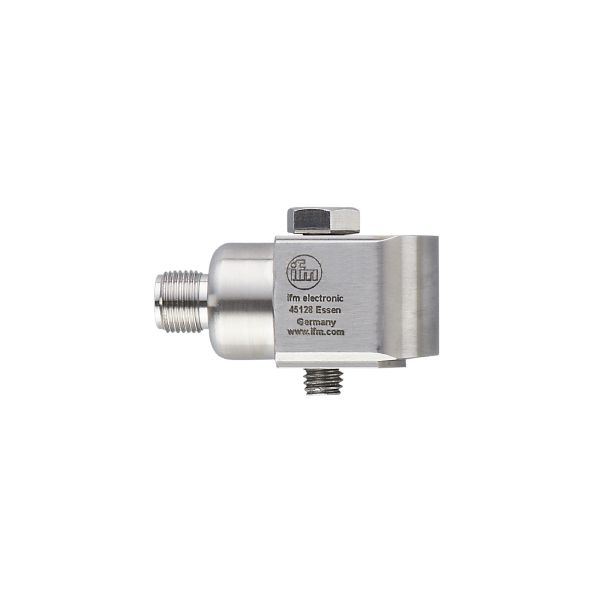

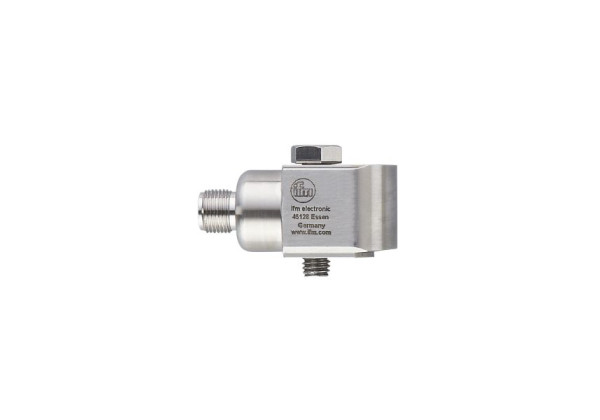

VSP003 - VIBRATION SENSOR

Code: VSP003

For the reliable vibration detection of machines and equipment
For connection to a diagnostic electronics for vibration sensors
Large operating temperature range and high protection rating for the requirements of harsh industrial environments
Compact and robust stainless steel housing with high mechanical overload protection
Very good repeatability and low linearity deviation

Product characteristics

Measuring range of vibration [g]	-50...50
Frequency range [Hz]	1.5...16000
Measuring principle	piezoelectric
Communication interface	IEPE

Application

Design	for connection to external diagnostic electronics VSE

Electrical data

Operating voltage [V]	10...12 DC
Current consumption [mA]	0.5...8
Min. insulation resistance [MΩ]	100; (500 V DC)
Reverse polarity protection	yes

Measuring/setting range

Measuring range of vibration [g]	-50...50
Frequency range [Hz]	1.5...16000
Measuring principle	piezoelectric
Noise density [mg]	0.1
Max. transverse sensitivity [%]	5
Minimum measuring time [s]	1
Number of measurement axes	1

Accuracy / deviations

Accuracy	± 10 %
Measuring sensitivity	100 mV/g

Interfaces

Communication interface	IEPE

Operating conditions

Ambient temperature [°C]	-55...130
Storage temperature [°C]	-55...130
Protection	IP 67

Tests / approvals

EMC

EN 61326-1

: 2013

Shock resistance

EN 61326-1

: 2013

MTTF [years]

1142

Mechanical data

Weight [g]	135
Type of mounting	M8 x 1,25
Materials	housing: stainless steel
Tightening torque [Nm]	8

Remarks

Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VSP003-00 — 13.04.2023 —
