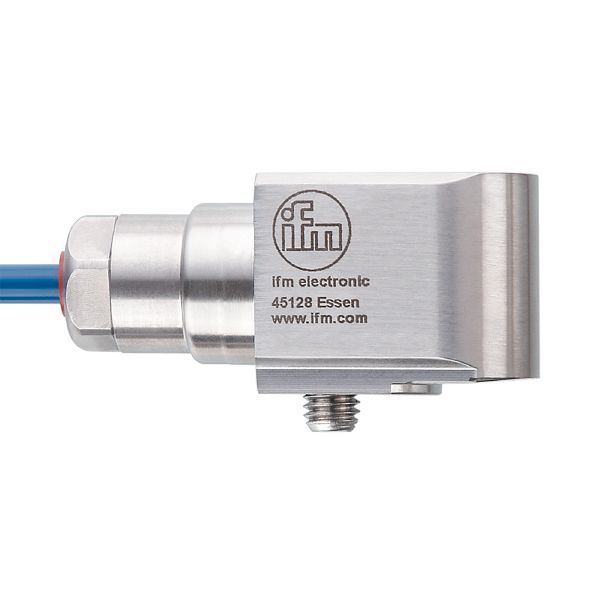

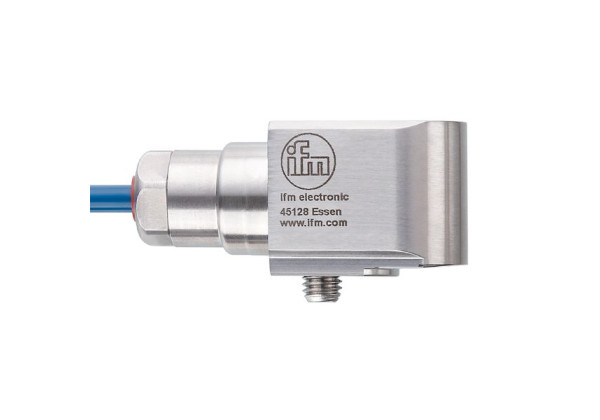

VSP02A Acceleration sensor VIBRATION SENSOR ATEX
Brand: IFM Electronic
Code: VSP02A
- For applications in hazardous areas
- Protection against permanent machine overload and unexpected standstill
- For connection to a diagnostic electronics for vibration sensors
- Large operating temperature range and high protection rating for the requirements of harsh industrial environments
- Compact and robust stainless steel housing with high mechanical overload protection
Product characteristics
| Measuring range of vibration [g] | -50...50 |
|---|---|
| Frequency range [Hz] | 2...10000 |
| Measuring principle | piezoelectric |
Application
| Design | for connection to external diagnostic electronics VSExxx |
|---|
Electrical data
| Switching amplifiers | connection to intrinsically safe supply isolators (Ex ia) |
|---|---|
| Operating voltage [V] | 10...12 DC |
| Current consumption [mA] | 0.5...8 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Max. load [Ω] | 200 |
|---|---|
| Short-circuit protection | yes |
| Overload protection | yes |
Measuring/setting range
| Measuring range of vibration [g] | -50...50 |
|---|---|
| Frequency range [Hz] | 2...10000 |
| Measuring principle | piezoelectric |
| Sensitivity [mV/g] | 100 |
| Noise density [mg] | 0.1 |
| Max. transverse sensitivity [%] | 5 |
| Minimum measuring time [s] | 2 |
| Number of measurement axes | 1 |
Operating conditions
| Ambient temperature [°C] | -55...90 |
|---|---|
| Storage temperature [°C] | -55...90 |
| Protection | IP 68; (1D application: IP 65) |
Tests / approvals
| Approval | Baseefa12ATEX0247; IECEx BAS 12.0132 | ||||
|---|---|---|---|---|---|
| ATEX marking | | ||||
| EMC |
| ||||
| Shock resistance |
|
Mechanical data
| Weight [g] | 669 |
|---|---|
| Type of mounting | M8 x 1,25 |
| Dimensions [mm] | 30 x 25.5 x 64.7 |
| Materials | housing: stainless steel |
| Tightening torque [Nm] | 8 |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — VSP02A — 24.04.2023 —
