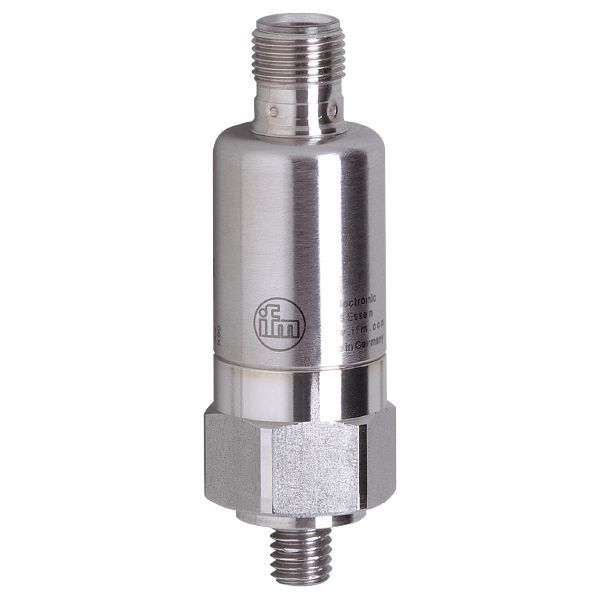

VTV121 - efector800-VIBRATION TRANSMITTER

Code: VTV121

Reliable permanent monitoring of the overall vibration to DIN ISO 10816
Two-wire technology
Precise linearized analogue output
Large operating temperature range and high protection rating
Compact and robust housing for the requirements of harsh industrial environments

Product characteristics

Measuring range of vibration [mm/s]	0...50; (RMS)
Frequency range [Hz]	10...1000

Application

Application	vibration transmitter to ISO 10816

Electrical data

Operating voltage [V]	9.6...32 DC
Protection class	III
Sensor type	microelectromechanical system (MEMS)

Inputs / outputs

Total number of inputs and outputs	1

Outputs

Analogue current output [mA]	4...20
Max. load [Ω]	< (Ub - 9,6 V) x 50; Ub = 24 V: 720

Measuring/setting range

Measuring range of vibration [mm/s]	0...50; (RMS)
Frequency range [Hz]	10...1000
Number of measurement axes	1

Accuracy / deviations

Measuring error [% of the final value]	< ± 3
Repeatability	< 0,5; (% of the final value)
Linearity deviation	0,25 %

Operating conditions

Ambient temperature [°C]

-30...125

Note on ambient temperature

UL application: < 70 °C

Storage temperature [°C]

-30...125

Protection

IP 67; IP 68; IP 69K

Tests / approvals

EMC

EN 61000-6-2
EN 61000-6-3

Shock resistance

DIN EN 60068-2-27	50 g 11 ms
	500 g 1 ms

Vibration resistance

DIN EN 60068-2-6

20 g / 10...3000 Hz

MTTF [years]

868

Mechanical data

Weight [g]	124
Type of mounting	set screw
Materials	stainless steel (1.4404 / 316L)
Tightening torque [Nm]	8

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
