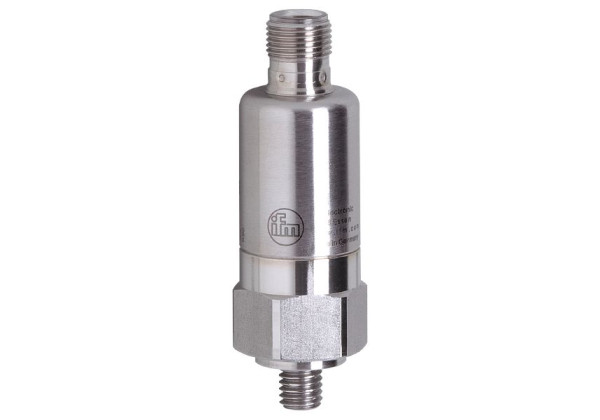

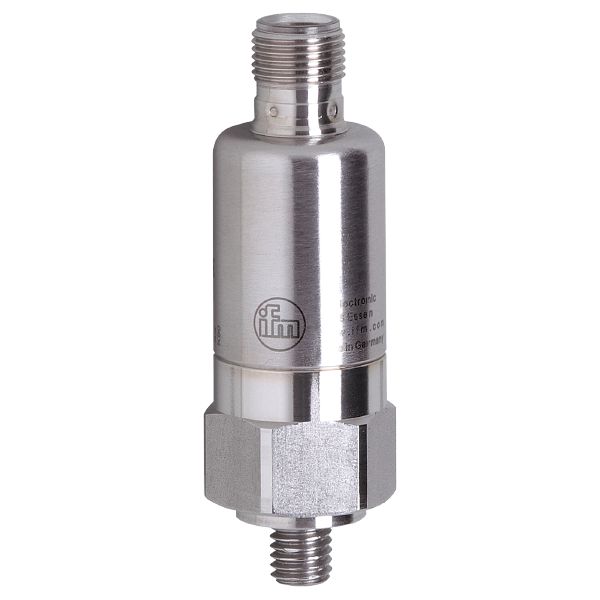

VTV12A - efector800-VIBRATION TRANSMITTER
Brand: IFM Electronic
Code: VTV12A
- Reliable permanent monitoring of the overall vibration to DIN ISO 10816
- Two-wire technology
- Precise linearized analogue output
- Large operating temperature range and high protection rating
- For applications in hazardous areas
Product characteristics
| Measuring range of vibration [mm/s] | 0...25; (RMS) |
|---|---|
| Frequency range [Hz] | 10...1000 |
Application
| Application | vibration transmitter to ISO 10816 |
|---|
Electrical data
| Operating voltage [V] | 9.6...32 DC |
|---|---|
| Protection class | III |
| Sensor type | microelectromechanical system (MEMS) |
Inputs / outputs
| Total number of inputs and outputs | 1 |
|---|
Outputs
| Analogue current output [mA] | 4...20 |
|---|---|
| Max. load [Ω] | < (Ub - 9,6 V) x 50; Ub = 24 V: 720 |
Measuring/setting range
| Measuring range of vibration [mm/s] | 0...25; (RMS) |
|---|---|
| Frequency range [Hz] | 10...1000 |
| Number of measurement axes | 1 |
Accuracy / deviations
| Measuring error [% of the final value] | < ± 3 |
|---|---|
| Repeatability | < 0,5; (% of the final value) |
| Linearity deviation | 0,25 % |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 67; (when used outside the hazardous area: IP 69K) |
Tests / approvals
| ATEX marking | | ||||
|---|---|---|---|---|---|
| | |||||
| EMC |
| ||||
| Shock resistance |
| ||||
| Vibration resistance |
| ||||
| MTTF [years] | 868 |
Mechanical data
| Weight [g] | 139 |
|---|---|
| Type of mounting | set screw |
| Materials | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | 8 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 1 x M12 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — VTV12A — 19.09.2022 —
