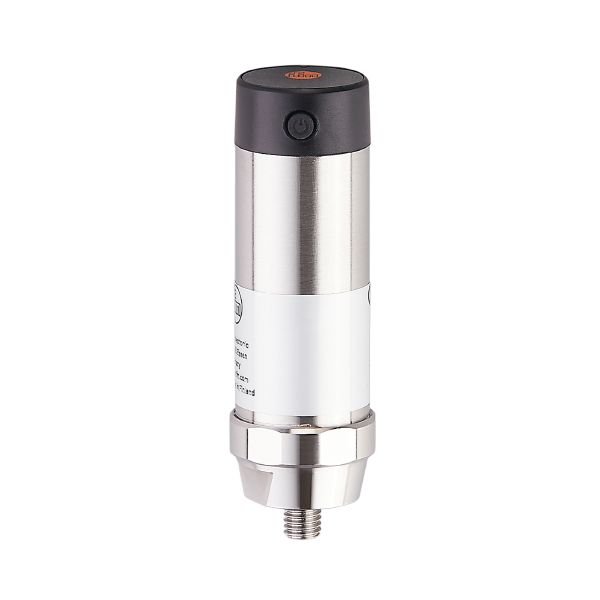

VWV001 wireless vibration sensor VIBRATION SENSOR WIRELESS
Brand: IFM Electronic
Code: VWV001
- Reliable and intermittent monitoring of the total vibration according to DIN ISO 10816
- Quick integration via battery operation and radio communication
- For communication with a gateway for wireless vibration sensors
- Intelligent mesh radio network up to the gateway
- Robust housing for use in harsh industrial environments
Product characteristics
| Measuring range of vibration [g] | -16...16 |
|---|---|
| Measuring range of vibration [mm/s] | 0...25 |
| Frequency range [Hz] | 10...1000 |
Application
| Application | vibration sensor to ISO 10816 | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Brazil | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 3.6 DC; (lithium thionyl chloride battery; battery life: > 4 years battery cannot be replaced) |
|---|---|
| Protection class | III |
| Sensor type | microelectromechanical system (MEMS) |
Measuring/setting range
| Measuring range of vibration [g] | -16...16 |
|---|---|
| Measuring range of vibration [mm/s] | 0...25 |
| Frequency range [Hz] | 10...1000 |
| Number of measurement axes | 1 |
| Measuring range [°C] | -30...80 |
|---|---|
| Resolution [°C] | 0.1 |
Accuracy / deviations
| Accuracy | ≤ 10 % |
|---|---|
| Linearity deviation | ≤ 10 % |
Software / programming
| Parameter setting options | MQTT |
|---|
Interfaces
| Frequency band | 2,4 GHz ISM |
|---|---|
| Range | < 25 m |
| Safety standard | AES-128 |
| Protocol | proprietary |
Operating conditions
| Ambient temperature [°C] | -30...80 | |
|---|---|---|
| Note on ambient temperature |
| |
| Storage temperature [°C] | -30...80 | |
| Protection | IP 68 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 177.1 |
|---|---|
| Type of mounting | set screw; (M8) |
| Materials | housing: stainless steel (1.4404 / 316L); polyethylene |
| Tightening torque [Nm] | 8 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — VWV001-00 — 05.11.2020 —
