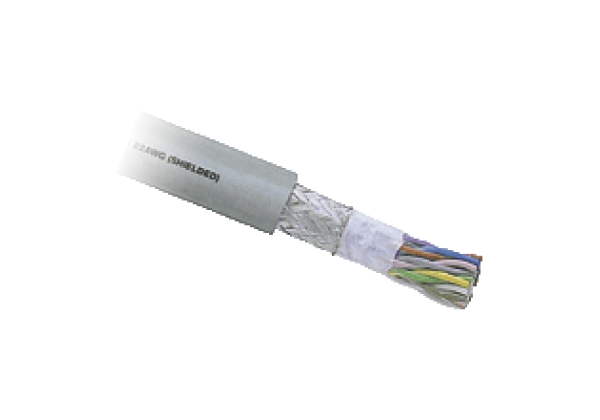

Data cable WCS-DCF
Brand: Pepperl+Fuchs
Code: WCS-DCF
Flexible data cable, Hard-wearing PUR cable, Halogen-free, Braided shield, Suitable for drag chains
Datasheet excerpt: Technical data of WCS-DCF
| Product Description |
|---|
| Flexible data cable |
| General specifications | ||
|---|---|---|
| Number of pins | 6 + shield | |
| Electrical specifications | ||
| Operating voltage | max. 60 V DC | |
| Test voltage | 1500 V | |
| Inductance | approx. 650 µH / km | |
| Capacitance | approx. 60 nF / km (wire/wire) | |
| Mechanical specifications | ||
| Material | ||
| Cable | PUR | |
| Cable | extra-fine wire, flexible | |
| Sheath diameter | ∅ 7.7 mm | |
| Bending radius | ≥ 58 mm | |
| Color | grey | |
| Cores | 3 x 2 x 0.25 mm2 24 AWG | |
| Mass | 72 kg / km | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060106 |
| ECLASS 12.0 | 27060106 |
| ECLASS 11.0 | 27060106 |
| ECLASS 10.0.1 | 27060106 |
| ECLASS 9.0 | 27062011 |
| ECLASS 8.0 | 27062011 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 |
| ETIM 7.0 | EC003250 |
| ETIM 6.0 | EC001578 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
