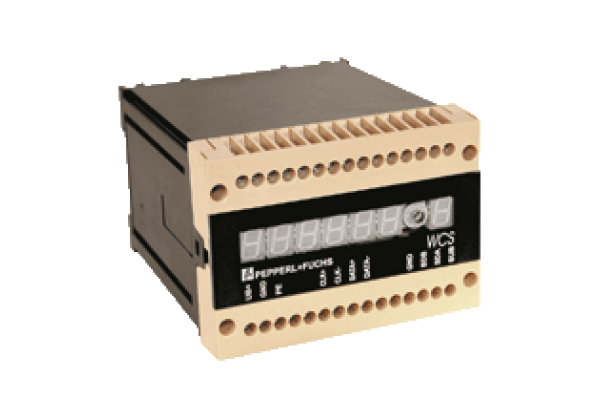

WCS interface module WCS-IS321
Brand: Pepperl+Fuchs
Code: WCS-IS321
WCS SSI interface module, Integrated display, Long possible cable legth between reading head and SSI master, DIN rail mounting
Datasheet excerpt: Technical data of WCS-IS321
| Product Description |
|---|
| WCS SSI interface module |
| General specifications | ||
|---|---|---|
| Installation | DIN rail mounting | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 20 % | |
| Power consumption | ≤ 2 W (without read heads) | |
| Interface 1 | ||
| Connection of | control system | |
| Interface type | SSI | |
| Transfer rate | max. 500 kHz | |
| Data output format | Gray code | |
| Bus termination resistor | integrated | |
| Interface 2 | ||
| Connection of | Read head | |
| Connectable read heads | WCS-LS221 | |
| Interface type | RS-485 | |
| Transmission method | half duplex | |
| Transfer rate | max. 62.5 kBit/s | |
| RS485 termination resistor | integrated | |
| Refresh cycle of read head | 1 ms | |
| Standard conformity | ||
| Emitted interference | EN 55011 | |
| Noise immunity | DIN EN 50082-2 | |
| Ambient conditions | ||
| Operating temperature | 0... 55 °C (32... 131 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Relative humidity | ≤ 80 % | |
| Mechanical specifications | ||
| Connection type | removable terminal block | |
| Housing width | 100 mm | |
| Housing height | 74 mm | |
| Housing depth | 121 mm | |
| Degree of protection | IP20 | |
| Material | plastic | |
| Installation position | any position | |
| Mass | approx. 350 g | |
