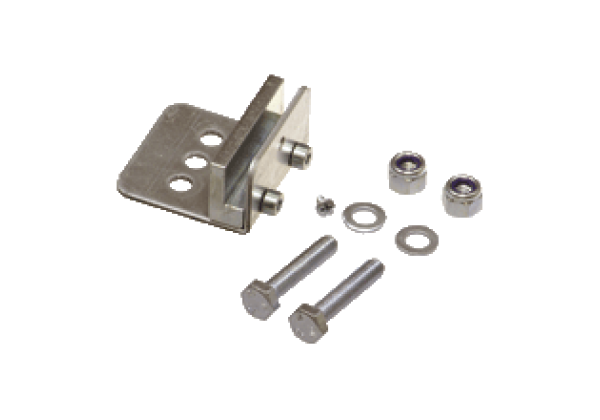

WCS mounting bracket system WCS-MB1-B
Brand: Pepperl+Fuchs
Code: WCS-MB1-B
Fastening angle for screw connection, curve, Mounting bracket for code rail, bend, Supplied with M6 mounting screws
Datasheet excerpt: Technical data of WCS-MB1-B
| Product Description |
|---|
| Fastening angle for screw connection, curve |
| Ambient conditions | ||
|---|---|---|
| Ambient temperature | -40... 100 °C (-40... 212 °F) | |
| Mechanical specifications | ||
| Material thickness | 2 mm | |
| Material | Metal sheet (steel), zinc-plated | |
| Mass | 85 g (without fastening screws) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
