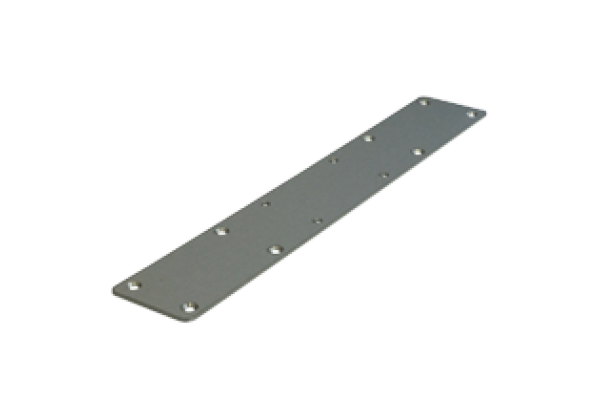

Connecting plate WCS-MV1
Brand: Pepperl+Fuchs
Code: WCS-MV1
Connecting plate for reading heads WCS3B-LS221-U1 and WCS3B-LS221-U2
Datasheet excerpt: Technical data of WCS-MV1
| Product Description |
|---|
| Connecting plate for reading heads WCS3B-LS221-U1 and WCS3B-LS221-U2 |
| Mechanical specifications | ||
|---|---|---|
| Material | AISI 304 | |
| Dimensions | (W x H x D) 325 mm x 57 mm x 2 mm | |
| General information | ||
| Scope of delivery | Connecting plate 8 screws M4 x 8 according to DIN EN ISO 7046, V4A | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
