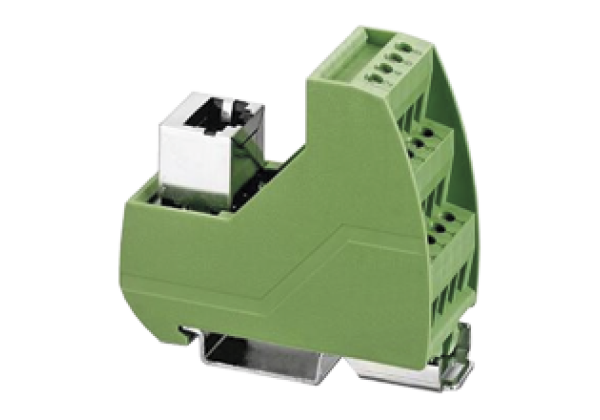

Terminal Block WCS-V45DIN-8P
Brand: Pepperl+Fuchs
Code: WCS-V45DIN-8P
Terminal Block, Converts an 8-pin RJ45 connector to terminal screws, For use with WCS3B-LS510 EtherNet/IP read heads, Terminal block to read head connection via V19SY-G... cordsets, 35 mm DIN mounting rail acc. to EN 60715:2001
Datasheet excerpt: Technical data of WCS-V45DIN-8P
| Product Description |
|---|
| Terminal Block |
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 48 V AC/DC | |
| Ambient conditions | ||
| Ambient temperature | -20... 50 °C (-4... 122 °F) | |
| Mechanical specifications | ||
| Housing length | 69 mm | |
| Housing width | 27 mm | |
| Housing height | 55 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
