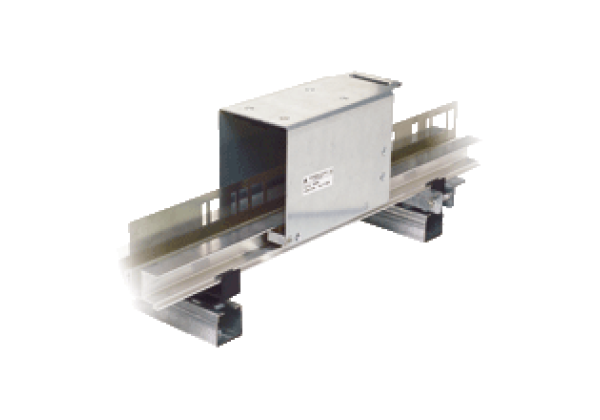

WCS2 aluminum profile system WCS2-GT09-P1
Brand: Pepperl+Fuchs
Code: WCS2-GT09-P1
WCS2 guiding trolley, Ensures the optimum alignment of reading head and code rail, With prefitted mounting plate for reading head, Cleaning brushes can be applied
Datasheet excerpt: Technical data of WCS2-GT09-P1
| Product Description |
|---|
| WCS2 guiding trolley |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 8 m/s | |
| Ambient conditions | ||
| Operating temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Bending radius | ≥ 1000 mm | |
| Material | Metal sheet (steel), zinc-plated Plastic rollers | |
| Mass | 1000 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
