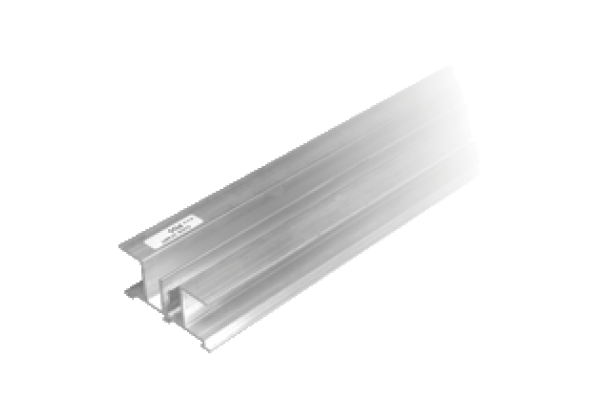

WCS2 profile rail WCS2-PS1
Brand: Pepperl+Fuchs
Code: WCS2-PS1
WCS2 profile rail, Rapid installation, Holds both, laminate and stainless steel code rails, Long suspension distance, All mounting orientations are possible, Required, if guide trolleys are used
Datasheet excerpt: Technical data of WCS2-PS1
| Product Description |
|---|
| WCS2 profile rail |
| Ambient conditions | ||
|---|---|---|
| Operating temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Length | 1 m... 5 m | |
| Bending radius | ≥ 1000 mm | |
| Material | Aluminum | |
| Thermal expansion coefficient | 2.4 x 10-5 / K | |
| Mass | 1000 g / m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
