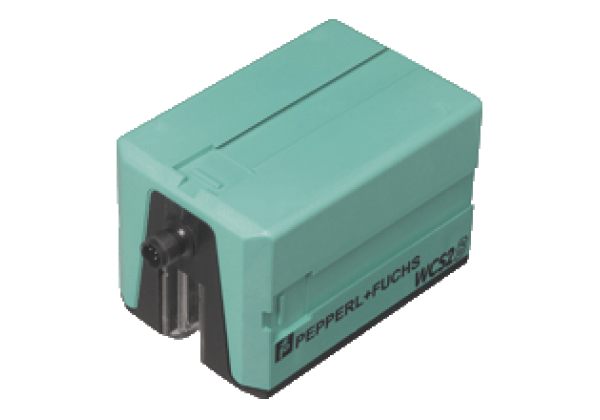

Read head WCS2B-LS221
Brand: Pepperl+Fuchs
Code: WCS2B-LS221
Read head, RS-485 interface,
with RS-485 termination resistor, RS-485 interface, Non-contact, absolute position encoder, Automatic detection of dirt accumulation
Datasheet excerpt: Technical data of WCS2B-LS221
| Product Description |
|---|
| Read head, RS-485 interface, with RS-485 termination resistor |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 12.5 m/s | |
| Measuring range | max. 327 m | |
| Free tolerances to code rail | horizontal: 10 mm ( ± 5 mm ) vertical: 10 mm ( ± 5 mm ) | |
| Resolution | ± 0.42 mm (1,200 positions/m) | |
| Functional safety related parameters | ||
| MTTFd | 66 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Power consumption | 2 VA | |
| Interface | ||
| Interface type | RS 485 interface | |
| Data output code | binary code | |
| Protocol | 1 , 2 | |
| Transfer rate | 62.5 kBit/s | |
| Termination | with RS 485 termination | |
| Standard conformity | ||
| Emitted interference | DIN EN 61000-6-4 | |
| Noise immunity | DIN EN 61000-6-2 | |
| Shock resistance | DIN EN 60068-2-27, half sine 30 g, 18 ms | |
| Vibration resistance | DIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles | |
| Approvals and certificates | ||
| CSA approval | cCSAus Certified, General Purpose Class 2 power source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | 0... 60 °C (32... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Connection type | 5-pin, M12 x 1 connector | |
| Degree of protection | IP54 | |
| Material | ||
| Housing | ABS , Polycarbonate , Polyamide (PA) | |
| Mass | 500 g | |
| General information | ||
| Ordering information | Mounting plate included with delivery | |
