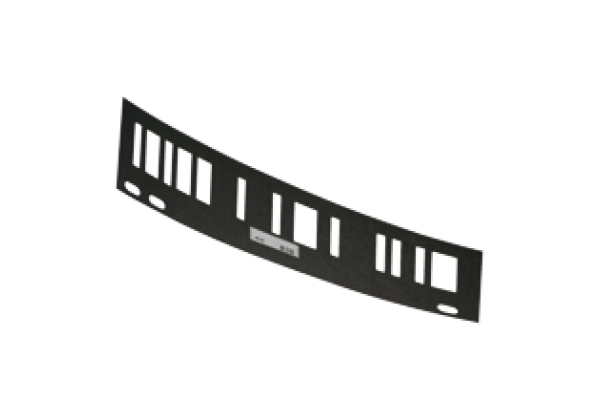

ID Pad WCS3-ID70-L1
Brand: Pepperl+Fuchs
Code: WCS3-ID70-L1
ID pad, polyester laminate, Flexible installation by means of mounting bracket system, High chemical resistance, Low weight, Code rail cutout for identification and fine positioning, Extensive number range 1... 1260
Datasheet excerpt: Technical data of WCS3-ID70-L1
| Product Description |
|---|
| ID pad, polyester laminate |
| General specifications | ||
|---|---|---|
| ID-PAD-Number | ID PAD number = INT ( ( read position - 30 ) / 312 ) + 1 | |
| Number interval | 1... 1260 | |
| Length | Typical length 249.6 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 60 °C (-40... 140 °F) | |
| Storage temperature | -40... 60 °C (-40... 140 °F) | |
| Mechanical specifications | ||
| Material thickness | 0.7 mm | |
| Material | polyester laminate | |
| Mass | approx. 10 g | |
| General information | ||
| Ordering information | place your order with the desired ID-PAD number, please | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
