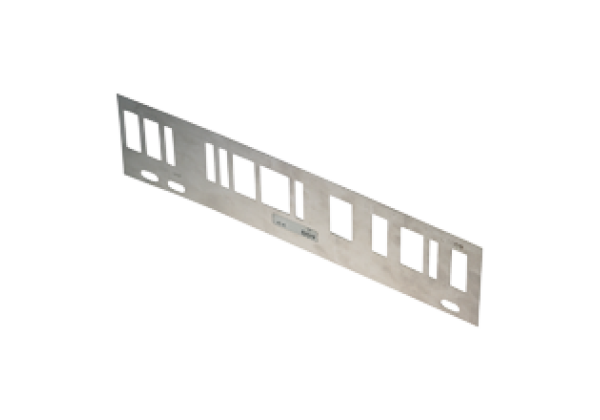

ID Pad WCS3-ID70-M1
Brand: Pepperl+Fuchs
Code: WCS3-ID70-M1
ID pad, stainless steel, Flexible installation by means of mounting bracket system, High mechanical stability, High temperature resistance, Code rail cutout for identification and fine positioning, Extensive number range 1... 1260
Datasheet excerpt: Technical data of WCS3-ID70-M1
| Product Description |
|---|
| ID pad, stainless steel |
| General specifications | ||
|---|---|---|
| ID-PAD-Number | ID PAD number = INT ( ( read position - 30 ) / 312 ) + 1 | |
| Number interval | 1... 1260 | |
| Length | Typical length 249.6 mm | |
| Ambient conditions | ||
| Operating temperature | -40... 450 °C (-40... 842 °F) | |
| Mechanical specifications | ||
| Material thickness | 0.5 mm | |
| Material | stainless steel 1.4310 / AISI 301 | |
| Mass | approx. 60 g | |
| General information | ||
| Ordering information | place your order with the desired ID-PAD number, please | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270991 |
| ECLASS 11.0 | 27270792 |
| ECLASS 10.0.1 | 27270792 |
| ECLASS 9.0 | 27270792 |
| ECLASS 8.0 | 27270792 |
| ECLASS 5.1 | 27270791 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
