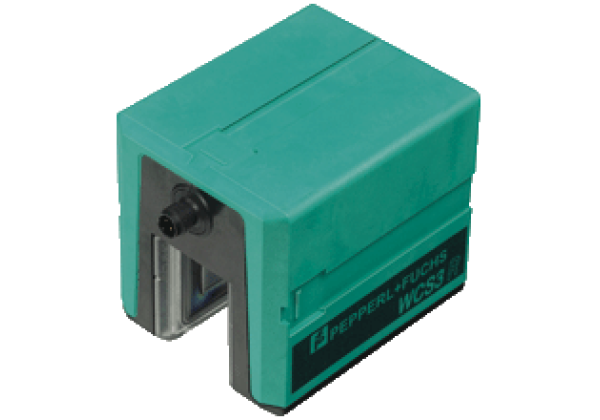

Read head WCS3R-LS24A
Brand: Pepperl+Fuchs
Code: WCS3R-LS24A
Read head, RS-485 interface,
with RS-485 termination resistor, Non-contact, absolute position encoder, Automatic detection of dirt accumulation, Output of position and speed, Optimized for all control and elevator systems, Slip-free system, No reference run required, Quick mounting, RS 422 interface, High resolution
Datasheet excerpt: Technical data of WCS3R-LS24A
| Product Description |
|---|
| Read head, RS-485 interface, with RS-485 termination resistor |
| General specifications | ||
|---|---|---|
| Passage speed | ≤ 2.2 m/s | |
| Measuring range | max. 100 m | |
| Free tolerances to code rail | horizontal: 31 mm ( ± 15.5 mm ) vertical: 28 mm ( ± 14 mm ) | |
| Resolution | ± 1 mm | |
| Functional safety related parameters | ||
| MTTFd | 50 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: power on | |
| Data flow indicator | LED yellow: data communication active | |
| Error indicator | LED red flashing: read head outside of code rail solid on: internal diagnostic test failed | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Power consumption | 2 VA | |
| Interface | ||
| Interface type | RS 422 | |
| Data output code | binary code | |
| Protocol | see protocol description | |
| Transfer rate | Baud rate 19.2 kBit/s | |
| Standard conformity | ||
| Emitted interference | DIN EN 61000-6-4 , DIN EN 12015 | |
| Noise immunity | DIN EN 61000-6-2 , DIN EN 12016 | |
| Shock resistance | DIN EN 60068-2-27, half sine 30 g, 18 ms | |
| Vibration resistance | DIN EN 60068-2-6, sine, 5 g, 10 - 2000 Hz, 10 cycles | |
| Approvals and certificates | ||
| CSA approval | cCSAus Certified, General Purpose Class 2 power source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Operating temperature | 0... 60 °C (32... 140 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Connection type | 8-pin, M12 x 1 connector | |
| Degree of protection | IP54 | |
| Material | ||
| Housing | ABS , PC (Polycarbonate) | |
| Mass | 500 g | |
| General information | ||
| Ordering information | Mounting plate included with delivery | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270918 |
| ECLASS 12.0 | 27270918 |
| ECLASS 11.0 | 27270701 |
| ECLASS 10.0.1 | 27270701 |
| ECLASS 9.0 | 27270701 |
| ECLASS 8.0 | 27270701 |
| ECLASS 5.1 | 27270701 |
| ETIM 9.0 | EC001852 |
| ETIM 8.0 | EC001852 |
| ETIM 7.0 | EC001852 |
| ETIM 6.0 | EC001852 |
| ETIM 5.0 | EC001852 |
| UNSPSC 12.1 | 41111945 |
