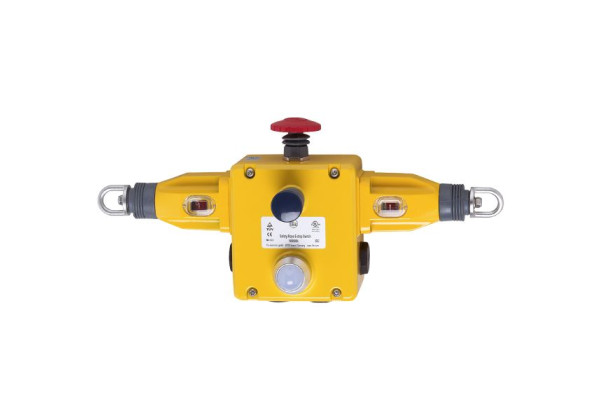

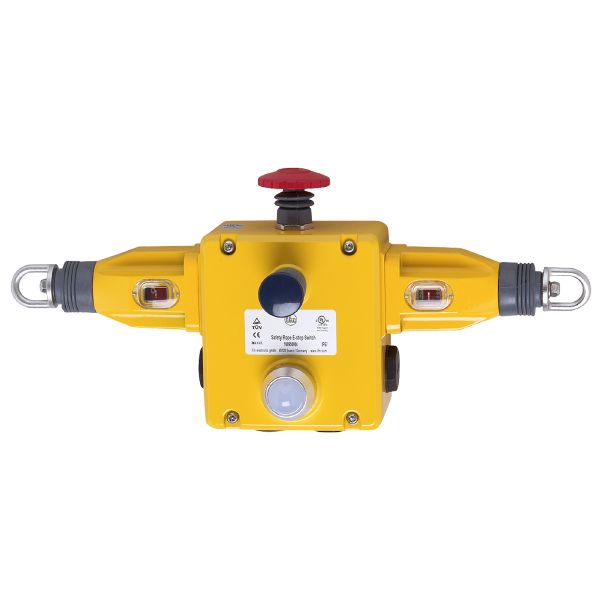

ZB0051 Safety rope emergency stop switch Rope Switch DH LED 24V DC
Brand: IFM Electronic
Code: ZB0051
- Reliable protection of extensive hazardous areas
- For use on conveyor belts
- Robust design for use in harsh industrial environments
- Easy setting of the rope tension
- Integration into AS-i networks
Electrical data
| Operating voltage [V] | 110...240 AC / 5...24 DC; (LED) |
|---|---|
| Rated insulation voltage [V] | 500 |
Outputs
| Electrical design | snap-action contact; max. switching voltage: 240 V; switching capacity: 720 VA; thermal current: 10 A | ||||
|---|---|---|---|---|---|
| Output function |
| ||||
| Minimum load current [mA] | 5; (5 V DC) | ||||
| Contact rating | 3 A (240 V AC) / 6 A (120 V AC) / 2,5 A (24 V DC); (inductive load) | ||||
| Short-circuit protection | no |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Shock resistance |
| ||
|---|---|---|---|
| Vibration resistance |
|
Mechanical data
| Weight [g] | 1536.5 | ||
|---|---|---|---|
| Materials | housing: diecast aluminium yellow; switching contact: silver-plated | ||
| Information on service life |
| ||
| Installation position | any | ||
| Rope span | 125 m; (per side) | ||
| Activation force [N] | < 125; (tension force: 130 N) |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | 10 A; fast acting |
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals:...2.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — ZB0051 — 05.09.2023 —
