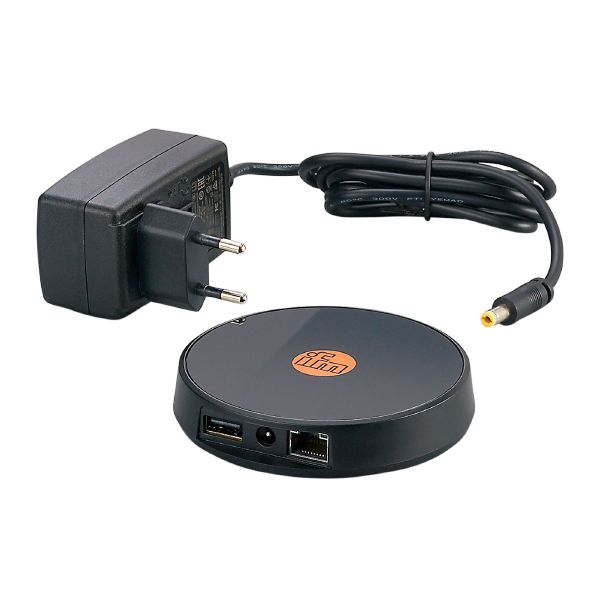

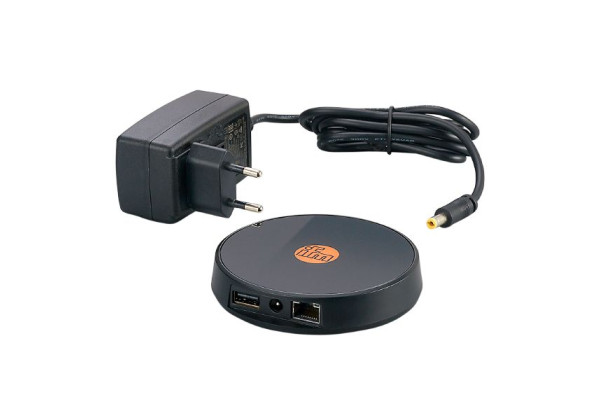

ZB0929 gateway for wireless vibration sensors VIBRATION WIRELESS GATEWAY IP20
Brand: IFM Electronic
Code: ZB0929
- For communication with wireless vibration sensors
- Simple configuration via integrated web interface
- Cable-based or wireless communication options with higher-level systems
- Data transmission via the MQTT JSON interface
- Visualisation of the characteristic values with moneo
Application
| Radio approval for | USA; Canada; EU/RED; Australia; Brazil | |
|---|---|---|
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 3.6 DC; (lithium thionyl chloride battery lithium thionyl chloride battery; battery life > 4 years; (depending on environmental conditions & settings); battery cannot be replaced) |
|---|---|
| Current consumption [mA] | < 200 |
| Protection class | III |
Software / programming
| Parameter setting options | MQTT; ifm IoTcore |
|---|
Interfaces
| Communication interface | WLAN; Mobile networks; Ethernet |
|---|
| Connector type | RJ45 |
|---|---|
| Protocol | TCP/IP |
| Usage type | data transmission |
| Frequency band | 2,4 GHz | |
|---|---|---|
| Safety standard | AES-128 | |
| Protocol | proprietary | |
| Usage type | sensor connection | |
| Note on interfaces |
|
| Transmission standard | 2G quadband GSM; LTE Cat-M1; NarrowBand-IoT |
|---|---|
| Usage type | data transmission |
| Connector type | USB A |
|---|---|
| Usage type | firmware update |
| Frequency band | 2,4 GHz |
|---|---|
| Safety standard | WPA2 |
| Usage type | data transmission |
Operating conditions
| Ambient temperature [°C] | 0...50 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Protection | IP 20 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 423 |
|---|---|
| Dimensions [mm] | Ø 95 |
| Materials | PA; ABS |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZB0929-01 — 21.02.2023 —
