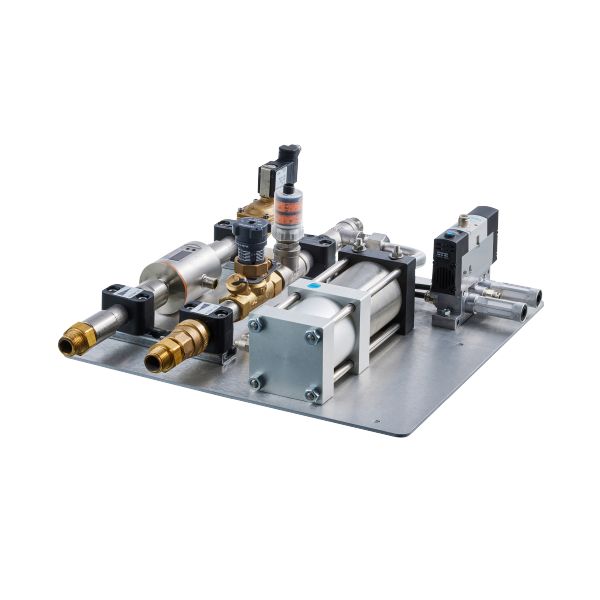

ZZ0432 Cooling water control panel SUCTION SYSTEM FOR COOLING WATER
Brand: IFM Electronic
Code: ZZ0432
- For use in robot spot welding systems in the automotive industry
- Reliable detection of lost tips, burst pipes and leakage in the cooling system
- With flow meter to detect the amount of cooling water
- Pressure sensor to detect a sudden drop in pressure
- With cooling water suction device in case of a fault
Product characteristics
| Process connection | M22 x 1,5 |
|---|
| Process connection | threaded connection R 1/2 |
|---|
| Measuring range [l/min] | 0.1...25 |
|---|
Application
| Special feature | Gold-plated contacts | |||||||
|---|---|---|---|---|---|---|---|---|
| Application | Industrial applications / factory automation; cooling water control; cooling water extraction | |||||||
| Installation | connection to pipe by means of an adapter; tube connection | |||||||
| Measuring parameters | flow; temperature; pressure; totaliser | |||||||
| Control | manual | |||||||
| Media | conductive liquids; hydrous media; glycol solutions | |||||||
| Medium temperature [°C] | -10...70 | |||||||
| Pressure rating [bar] | 10 | |||||||
| Volume expansion cylinder [ml] | 99.75 | |||||||
| Components |
|
Outputs
| Output signal | switching signal; analogue signal; pulse signal; IO-Link (configurable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
Measuring/setting range
| Measuring range [bar] | 0...10 |
|---|
| Measuring range [l/min] | 0.1...25 |
|---|
| Measuring range [°C] | -20...80 |
|---|
Response times
| Risk time (response time for safety-related faults) [ms] | 500 |
|---|
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; (sensors) |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 8702.8 |
|---|---|
| Type of mounting | with mounting plate |
| Materials | stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE; PBT; gunmetal (2.1096.01) |
| Materials (wetted parts) | stainless steel (1.4404 / 316L); PEEK; FKM; NBR; PVDF; PTFE |
| Process connection | M22 x 1,5 |
|---|
| Process connection | threaded connection R 1/2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector: 4 x M12; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — ZZ0432-01 — 07.10.2021 —
