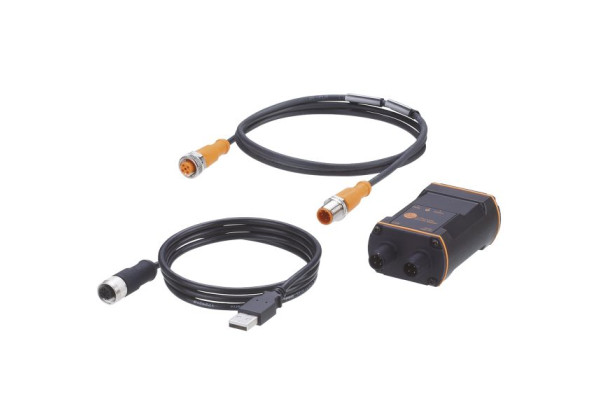

ZZ1060 IO-Link interface SET AL1060 IO-Link Master USB

Code: ZZ1060

For connecting sensors with IO-Link capability to a PC
For quick and easy parameter setting and set-up of IO-Link devices
Robust M12 connectors for field applications for USB, power, and sensor communication
Clearly visible LEDs for displaying operation, switching status and error
Reading of the current measured values, process values and parameter settings

Application

Application	parameter setting and analysis of units

Electrical data

Nominal voltage DC [V]	5; (USB)
Current consumption [mA]	< 1100; (USB)
Protection class	III
Sensor supply	24 V DC

Sensor supply - AUX

Current rating per port [A]	0.65

Sensor supply - USB

Current rating per port [A]	0.15

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 2; Number of digital outputs: 2

Inputs

Number of digital inputs	2; (IO-Link port Class A : 1 x 2)
Switching level high [V]	11...30
Switching level low [V]	0...5
Short-circuit protection digital inputs	yes

Outputs

Number of digital outputs	2; (IO-Link port Class A: 1 x 2)
Max. current load per output [mA]	150
Short-circuit proof	yes

Interfaces

Communication interface	IO-Link; USB
Number of USB interfaces	1

IO-Link Master

Transmission type	COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud)
IO-Link revision	1.1
Number of ports class A	1

USB

Version	USB 2.0

Operating conditions

Ambient temperature [°C]	-25...50
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90
Protection	IP 65; IP 67

Tests / approvals

EMC

DIN EN 61000-6-2
DIN EN 61000-6-4

Shock resistance

DIN EN 60068-2-27

Vibration resistance

DIN EN 60068-2-64
DIN EN 60068-2-6

Mechanical data

Weight [g]	388.3
Materials	housing: PA; socket: PA; lock nut: nickel-plated brass
Sealing material	FKM

Displays / operating elements

Display

PWR	1 x LED, green/red power supply
IO-Link	1 x LED, green/red communication
DI/DO	1 x LED, orange digital input/output

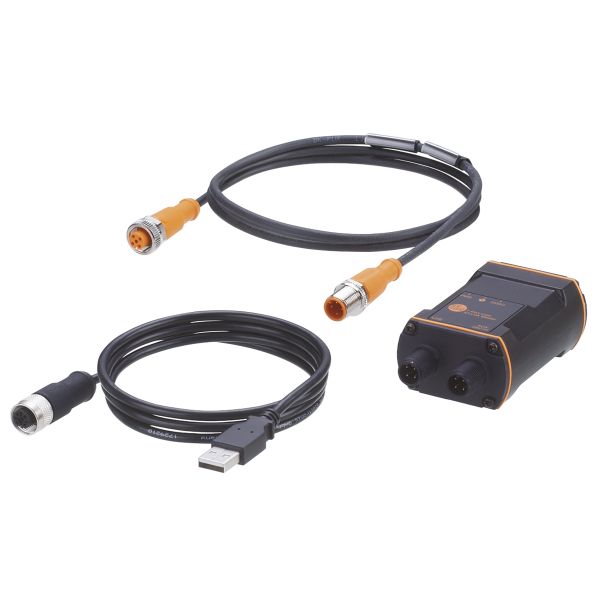

Accessories

Items supplied

IO-Link master with USB interface: 1, AL1060

Connection cable: 1 m, M12 A-coded, EVC012

USB cable: 1 m, M12 B-coded, E12689

Accessories (optional)

Switched-mode power supply 24 V DC:, M12 A-coded, E80121

Remarks

Pack quantity	1 pcs.

Electrical connection - AUX

	Connector: M12; coding: A

Electrical connection - IO-Link

	Connector: M12; coding: A; Sealing: FKM

Electrical connection - USB

	; coding: B
